The logger operates in OEE2 mode and at the same time it is not possible to count NOK or OK parts, only working time.

OEE2

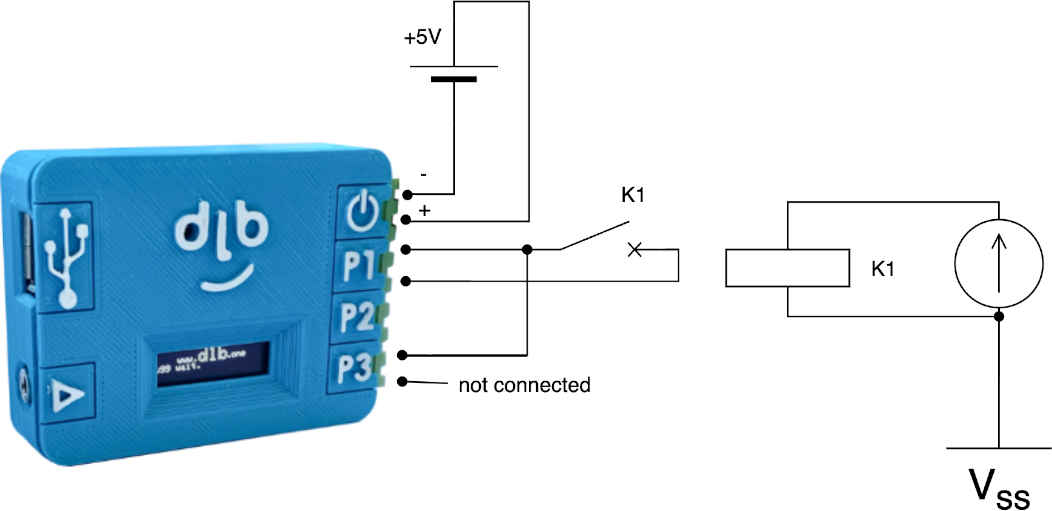

The logger is traditionally connected to the machine under the OEE2 option. In this case we use two P1,P3 I/O ports. The two ports P1 and P2 are bridged. The logger is completely isolated from the machine, so you must use a K1 relay. The principle is that total voltage isolation should be implemented for each signal.
