DESCRIPTION:
Features:
Connect it to a DLB logger and you can directly measure nuclear radiation.
For detecting 20mR/h ~ 120mR/h gamma rays and 100 ~ 1800 soft beta ray variables/points.
Alarm sound and light.
Interrupt output interface, through this interface you will connect it directly to the logger.
Supports most Geiger tubes: M4011, STS-5, SBM20, J305, etc. (The operating voltage of 330 ~ 600V geiger tube can be supported).
Support web portal dlb
SPECIFICATION :
Geiger tube parameters:
Technical parameters diameter: Φ10 ± 0.5mm
Total length: 90 ± 2mm
Starting voltage: < 350V
Recommended operating voltage: 380V
Minimum plateau length: 80V
Maximum plateau slope: 10%/80V
Extreme operating voltage: 550V
Maximum count rate: 25 times/min
Life: > 1x10 ^ 9 pulses
Average temperature: -40 ~ 55 ℃
Object size: 118*63mm / 4.6*2.5 inches
Package size: 130*80*50mm / 5.1*3.1*2.0 in.
Package Weight: 166g / 5.9 oz
Package List:

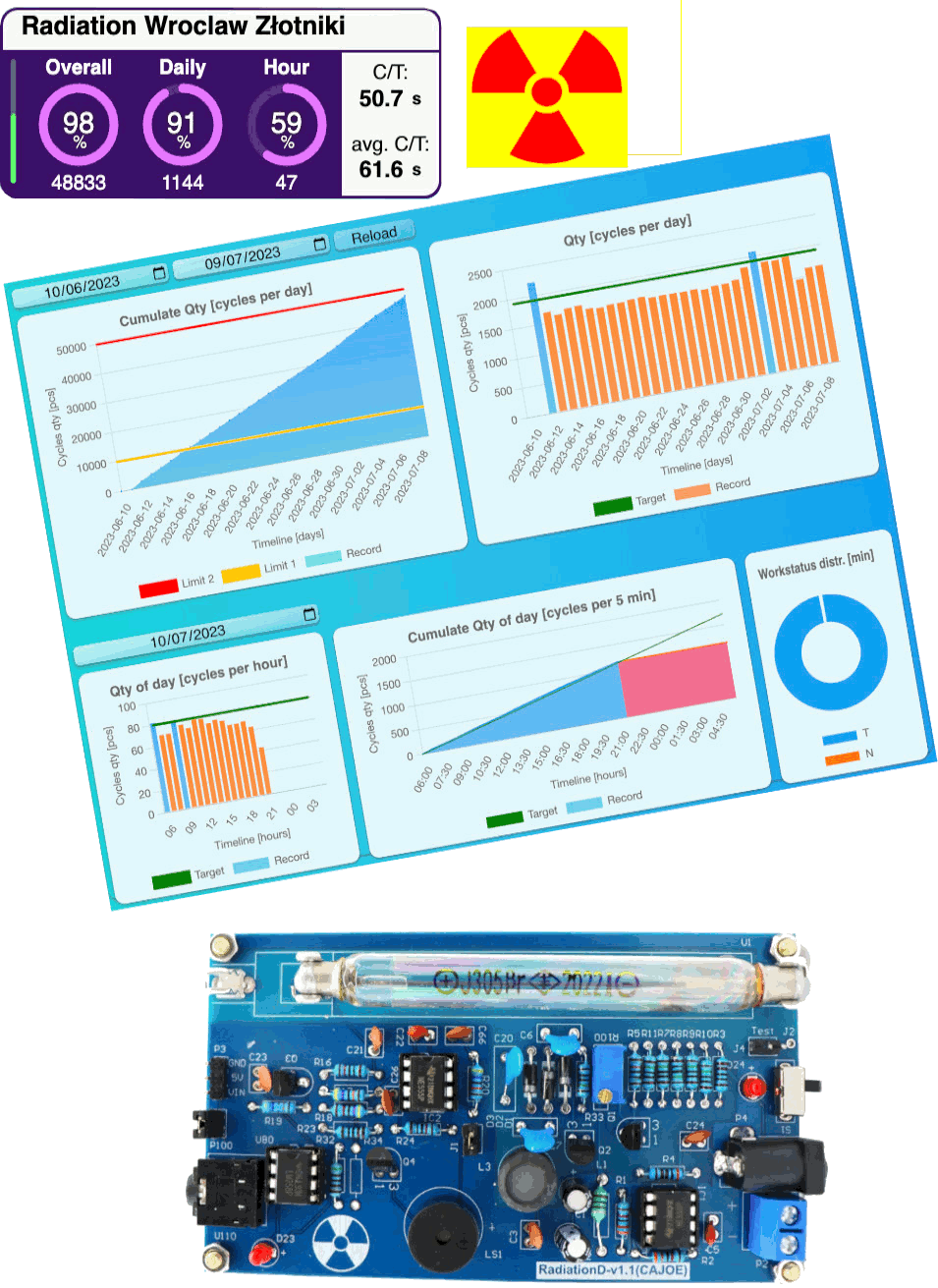

1 x assembled Radiation Detector System.
