DESCRIPTION:
Our company is also involved in designing new devices that the market is waiting for. We strive to quickly respond to the needs of our clients, which is why we offer some solutions as OEM products. Of course, we assist you in integrating these new solutions into your machinery. Thanks to our proprietary method of connecting new devices to the network, our clients can easily integrate these devices themselves within their own companies.

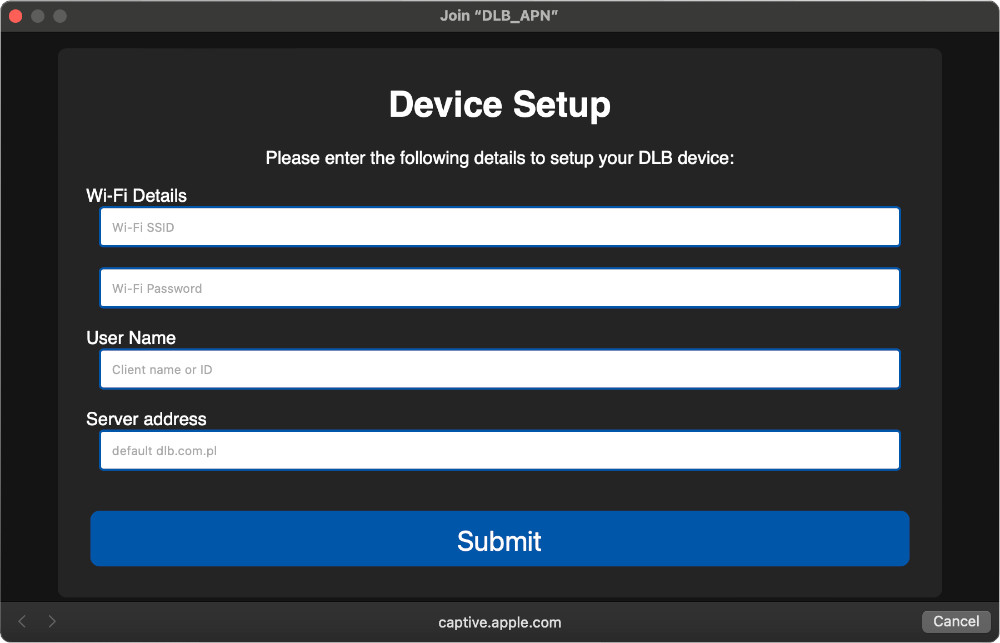

The configuration window for each of our devices appears automatically after selecting the emitted Wi-Fi network DLB_APN. The APN network becomes available after pressing the button on the device, which makes it very easy to start working with our equipment.

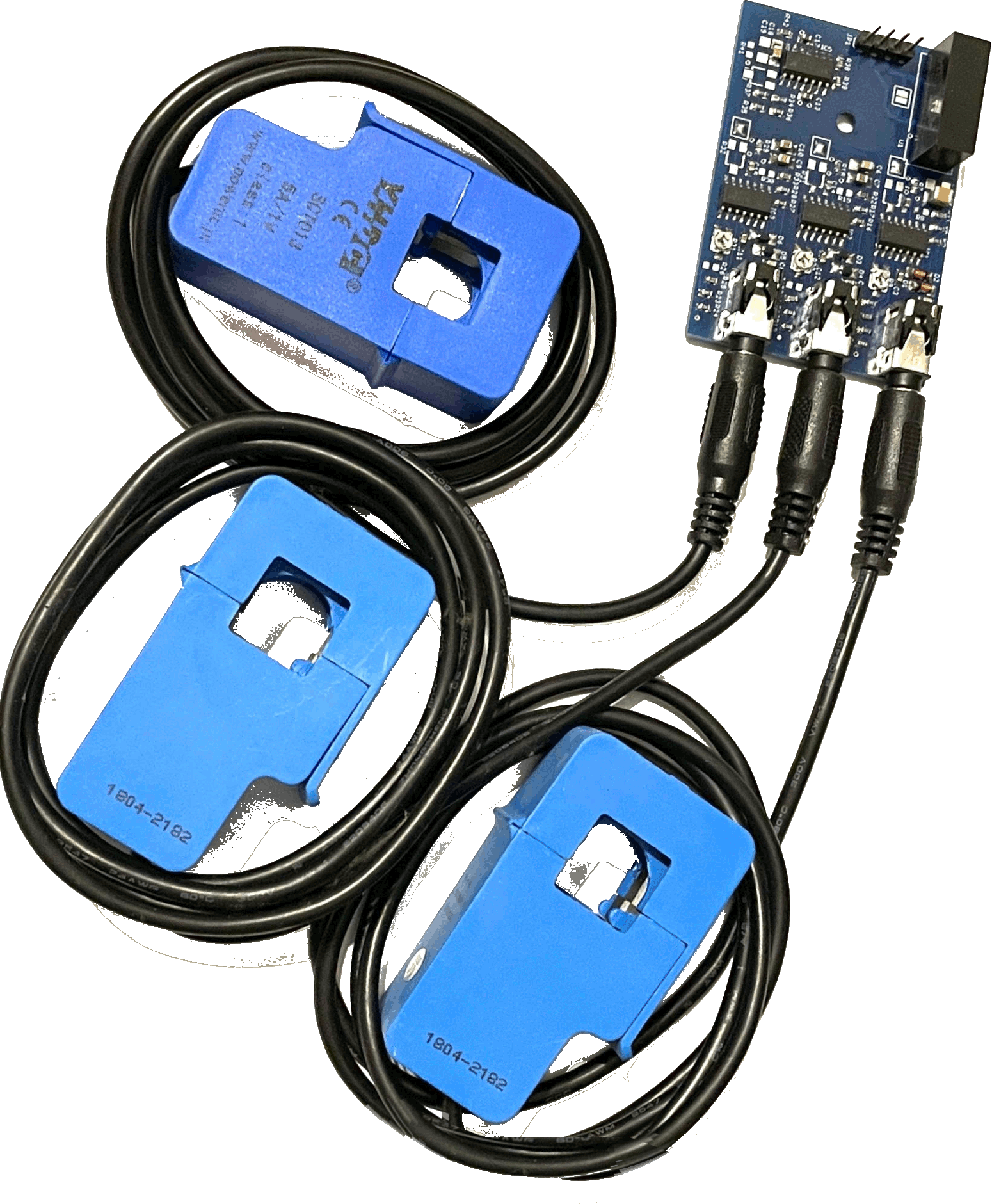

Current measurement:
The sensor measures the intensity of the current flowing in the cable without its opening. Measurement occurs through the insulation on a single wire (can measure three phases at a time), the output is the analog voltage of 0 to 1 V.
SPECIFICATION :
Input current: 0 to 250 A AC
Output voltage: 0 to 1 V AC
Built-in load resistor: 62 Ω
The windings ratio: depending on the current variant
Operating temperature range: -25 °C to 70 °C
Cable length: 1 m
NEW ! - option of independent analog output for each phase separately
Weight of the sensor: approx. 3x45g+50g = 185g

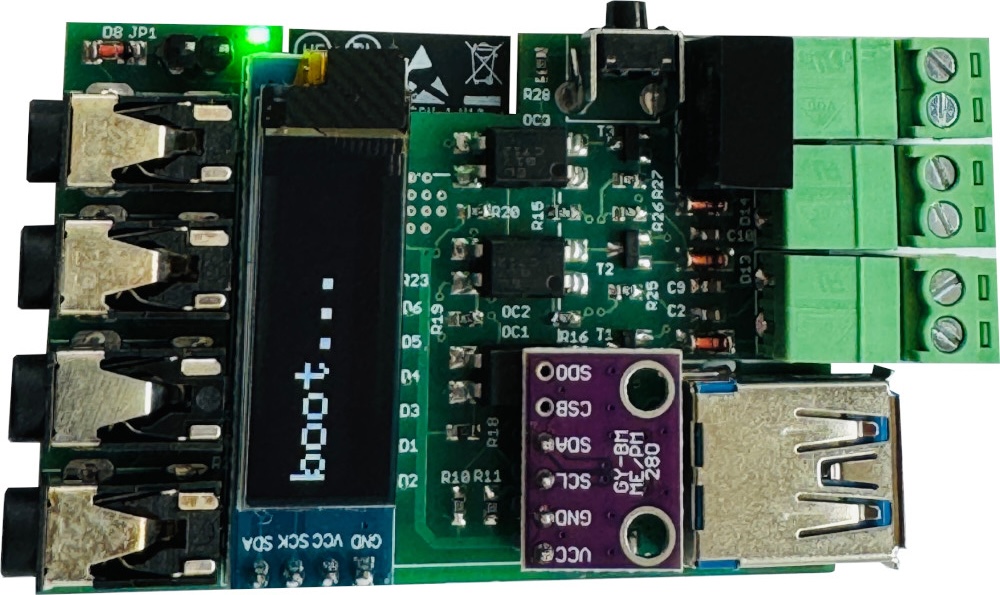

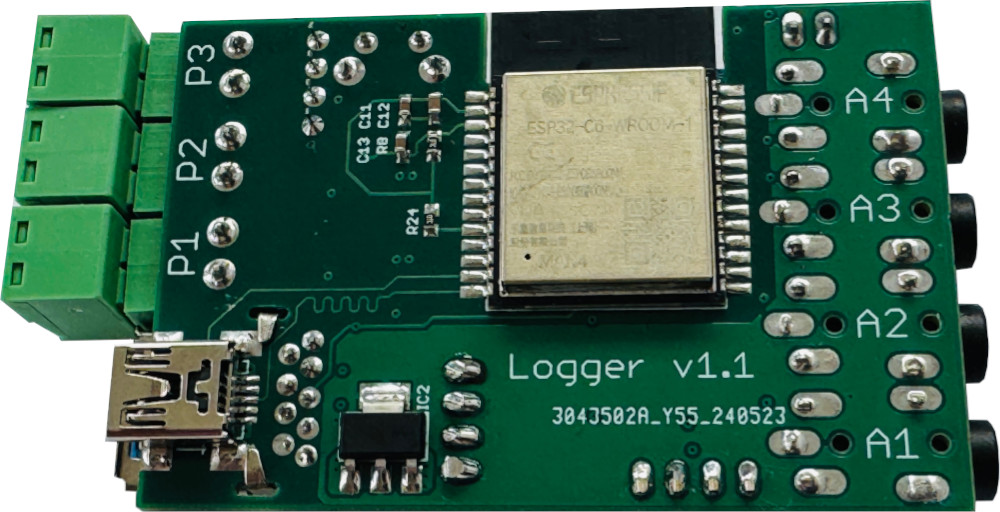

Open logger temperature pressure humidity:

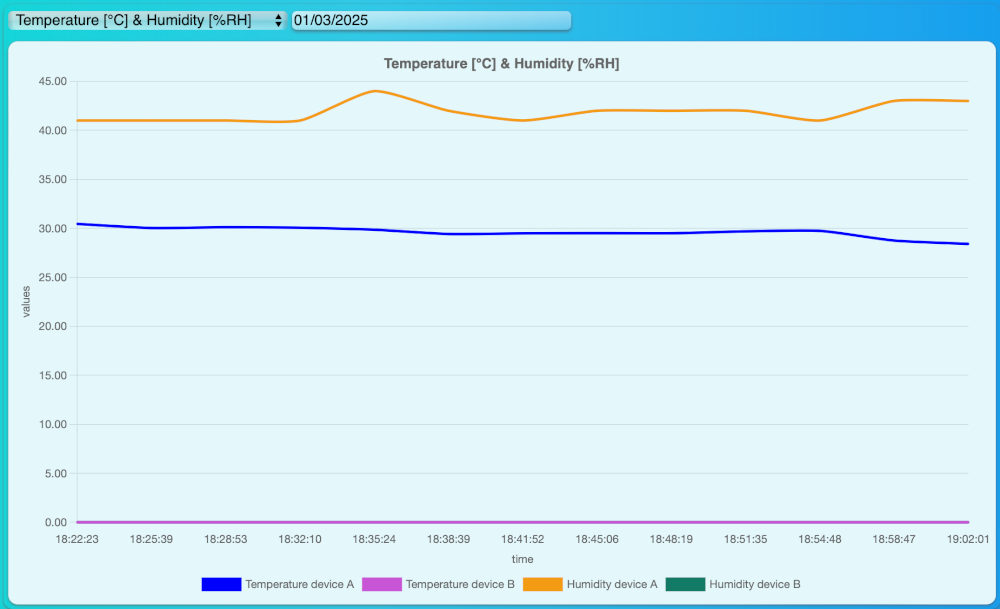

The next open project of our logger is set to be a hit. Currently, it works with many sensors on the I2C bus, and we also offer the Bosch BME280 sensor. Data on pressure, temperature, and humidity can be monitored in the DLB system, where you can set alarms and more.
SPECIFICATION :
Input voltage: 5V DC
Wifi 2,5GHz standard 6
work with "esp32_c6_public_dlb_logger_v3.bin"

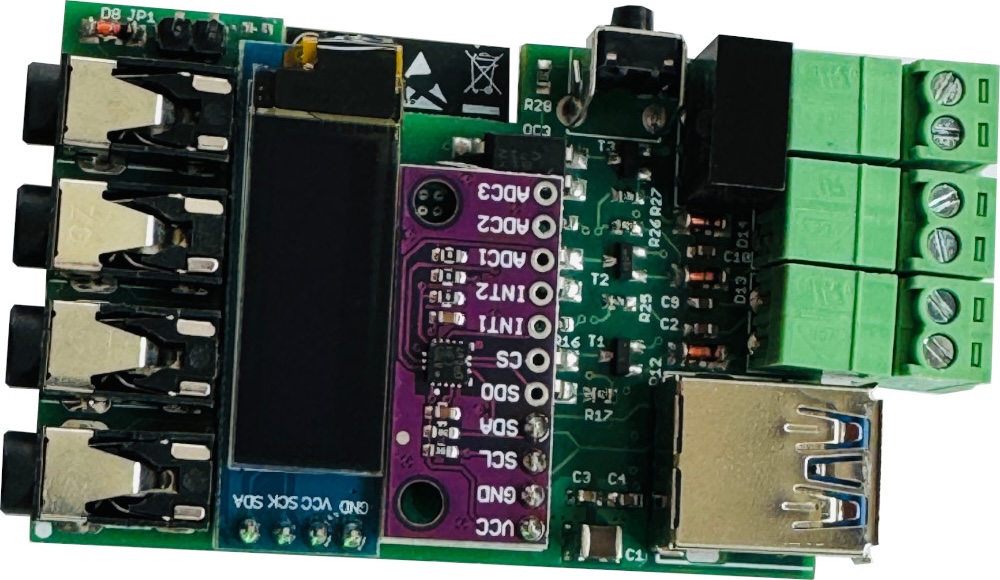

Open logger accelerometer:
The next open project of our logger is set to be a hit. Currently, it works with many sensors on the I2C bus, and we also offer the accelerometer sensor. Data can be monitored in the DLB system, where you can set alarms and more.
SPECIFICATION :
Input voltage: 5V DC
Wifi 2,5GHz standard 6
work with "esp32_c6_public_dlb_logger_v3.bin"

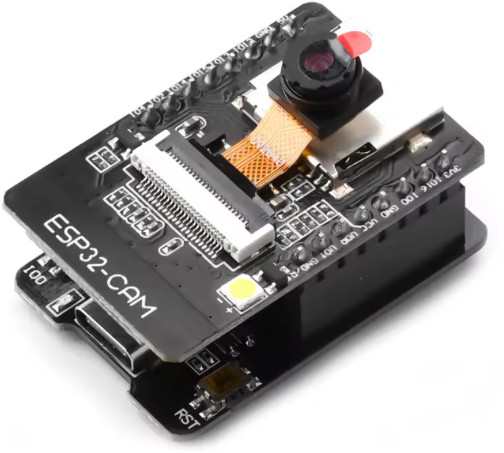

Camera:
The ESP32-CAM is a very small camera module with the ESP32-S chip besides the OV2640 camera.
By integrating with our DLB system, you can view your machine and production process from anywhere on earth.
SPECIFICATION :
Input voltage: 5V DC
Wifi 2,5GHz standard 6
work with "CameraWebServer_v2.bin"

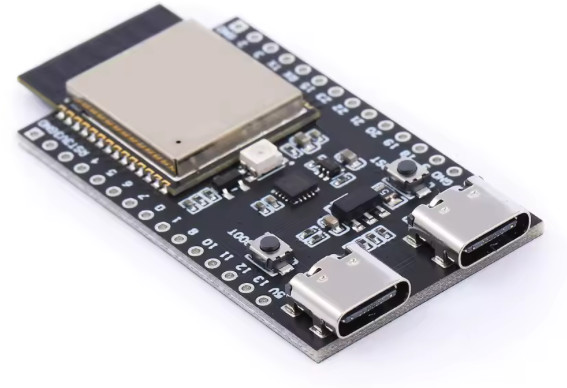

Open esp32_C6:
General-purpose development board ESP32-C6-DevKitC-1-N8 by Espressif, based on the ESP32-C6-WROOM-1 chip.
That it is compatible with our XX.bin program and with the BME280 sensor.
SPECIFICATION :
Input voltage: 5V DC
Wifi 2,5GHz standard 6
work with "esp32_c6_public_dlb_logger_v3.bin"
Bin's
CameraWebServer_v2.bin
CameraWebServer_v2.bootloader.bin
esp32_c6_public_dlb_logger_v3.bin
esp32_c6_public_dlb_logger_v3.bootloader.bin
